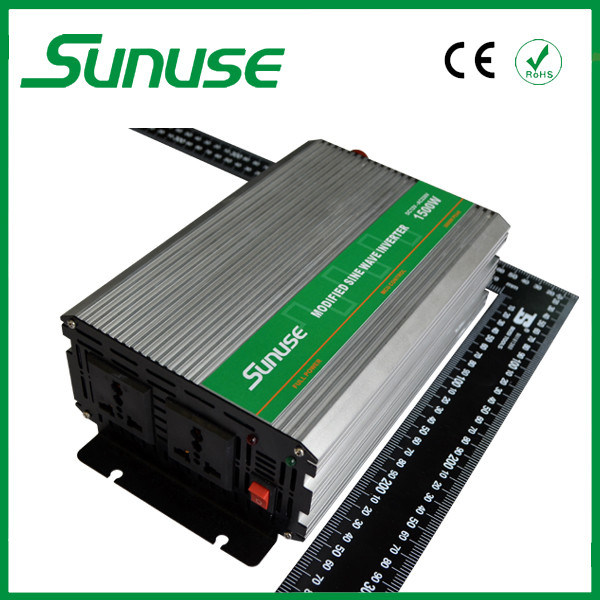

Solar Power Modfied Sine Wave Inverter 1500Watt With Charger For Laptop Computer

Models

SIM-1500

AC Output Properties

1

AC Voltage Range

230±10V AC/120±5V AC

2

AC Output Frequency

50±2Hz/60±2Hz

3

Continuous Output Power

1500W

4

Overload Protection

1530~1800W

5

Peak Output Power

3000W

6

Output Voltage Waveform

Modified Sine Wave

7

Efficiency

≥88%

≥90%

≥92%

8

Output Short Circuit Protection

Yes

9

High Temperature Protection

≤65℃

DC Input Properties

1

Nominal Input Voltage

13.2V

26.4V

52.8V

2

Input Voltage Range

11-15V

22-30V

44-60V

3

Low Voltage Cut Off

10.0±0.3V

20.0±0.5V

40.0±2V

4

Low Voltage Restart

12.0±0.3V

24.0±0.5V

48.0±2V

5

Low Voltage Alarm

10.5±0.3V

21.0±0.5V

42.0±2V

6

High Voltage Cut Off

16.0±0.3V

32.0±0.5V

64.0±2V

7

High Voltage Restart

15.0±0.3V

30.0±0.5V

60.0±2V

8

No Load Current

≤0.3A/≤0.2A

9

Input Reverse Protection

By fuse

Other Properties

1

Indicate

Operating :

Green LED

Fault :

Red LED And Alarm

2

Operating Temperature Range

-10~40℃

3

Storage Temperature Range

-20~55℃

4

Operating Relative Humidity

10%~90%(Non-condensate)

5

Storage Relative Humidity

5%~95%

6

Socket(for choice)

A~G

7

Main Size(L*W*H)

280*150*86mm

8

Weight(N.W.)

2.3kg
