Name: Small Hydraulic Force Sensor , Electronic Water Pressure Sensor
Brand: Shenzhen Jingyu Technology Co., Ltd.
SKU: F1861
Availability: InStock

Home Products Wireless Infrared Sensor

Small Hydraulic Force Sensor , Electronic Water Pressure Sensor

Product Details:

Place of Origin:	China
Brand Name:	tecsis
Model Number:	F1861

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	Standard: carton
Delivery Time:	Stock product:3~5 working days , No stock:10~35 days
Payment Terms:	L/C, T/T
Supply Ability:	20,000pcs per month

Contact Now

Detailed Product Description

Product Name:	F1861	Repeatability:	0.02%F.S.
Material:	Alloy Steel	Customized:	Acceptable
Capacity:	10t~50t	OEM/ODM:	Acceptable
Protection Class:	IP67	Usage:	Force Measurement
Highlight:	hydraulic pressure transducer , capacitive pressure sensor

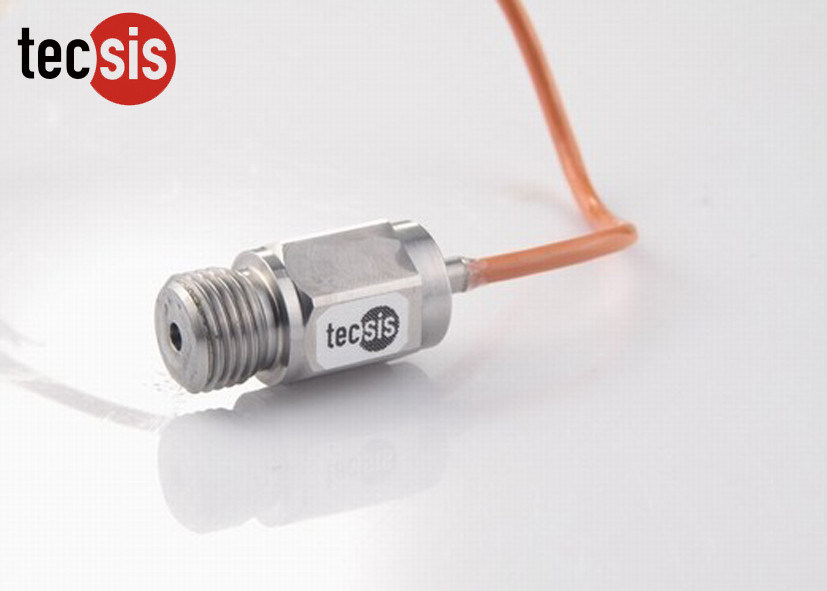

Small Hydraulic Force Sensor , Electronic Water Pressure Sensor

Features :

Model:P3805
Hydraulic pressure sensor
High comprehensive precision, high stability
Capacity:5~60Mpa
Made of stainless steel

Description:

P3805 hydraulic pressure sensor is Made of stainless steel, It has a small size and with high sensitivity. It is suitable for Hydraulic, die-casting, central air conditioning system, constant pressure water supply, locomotive braking systems, light industry, machinery, metallurgy, petrochemical, environmental protection, air compressor and other automatic control systems.

Applications:

It is suitable for Hydraulic, die-casting, central air conditioning system, constant pressure water supply, locomotive braking systems, light industry, machinery, metallurgy, petrochemical, environmental protection, air compressor and other automatic control systems.

Technical parameters:

Specifications		Technique
Output signal	2 wires	4~20mA
	3 wires	0~5V, 1~5V, 0~10V
	4 wires	0~10mV
Comprehensive accuracy		0.25~0.5% F.S.
Power supply		5~10VDC( Sensor) 12~30VDC(Transmitter)
Medium temperature		-20ºC~85ºC -20ºC~150ºC(Option)
Ambient temperature		-20ºC~85ºC
Load resistance		Voltage type ≥50kΩ Current type ≤800Ω
Insulation		≥5000MΩ / 50VDC
Response time		10ms
Protection class		IP65
Long term stability		0.1% F.S./ Year
Vibration effects		Impact is less than 0.2% F.S.
Electrical interface		M12×1 Direct wireØ5x1500mm Hessman lines Customized
Thread connection		M12×1,Check the selection table

Size and capacity:
