Name: Column Type Rotary Static Torque Sensor Aluminum Load Cell 1Nm To 150Nm
Brand: Shenzhen Jingyu Technology Co., Ltd.
SKU: F9801
Availability: InStock

Home Products Wireless Infrared Sensor

Column Type Rotary Static Torque Sensor Aluminum Load Cell 1Nm To 150Nm

Product Details:

Place of Origin:	China
Brand Name:	tecsis
Model Number:	F9801

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	Standard: carton
Delivery Time:	Stock product:3~5 working days , No stock:10~35 days
Payment Terms:	L/C, T/T
Supply Ability:	20,000pcs per month

Contact Now

Detailed Product Description

Product Name:	F9801	Type:	Column
Material:	Aluminum Alloy	Customized:	Acceptable
Capacity:	1~150NM	OEM/ODM:	Acceptable
Protection Class:	IP65	Usage:	Torque Force Measurement
Highlight:	rotary torque sensor , Static Torque Sensor

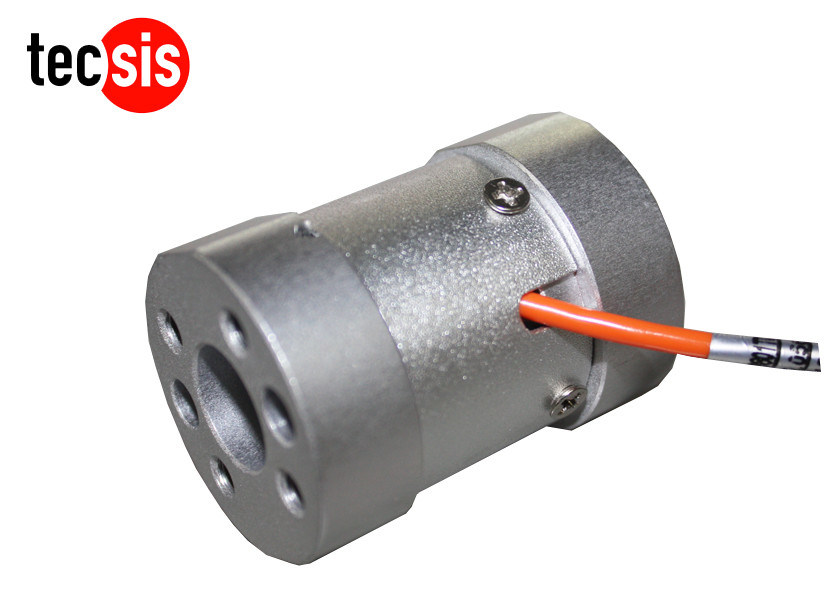

Column Type Rotary Static Torque Sensor Aluminum Load Cell 1Nm To 150Nm

Features :

Model:F9801
Capacity: 1~150NM
Simple structure, easy to install
High comprehensive precision, high stability
Made of Aluminum alloy
Delicate structure
Static torqie sensor

Description:

Static torque sensor with metal foil strain gauge technology and compact structure.

Made of aluminum alloy, there are six holes on both sidez of the load cell, this makes it easy to install, and it will be more stable to measure the torque force.

Mainly used for static, non-continuous rotational torque force measurement.

Application:

Mainly used for static, non-continuous rotational torque force measurement.

Technical parameters:

Specifications	Technique
Rated output	2.0±10%mV/V
Zero balance	±2% F.S.
Non-linearity	0.25% F.S.
Hysteresis	0.25% F.S.
Repeatability	0.1% F.S.
Creep (30min)	0.1% F.S.
Temp. effect on output	0.05% F.S. / 10ºC
Temp. effect on zero	0.05% F.S. / 10ºC
Input impedance	410±10Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/ 100VDC
Recommended excitation	10V
Maximum excitation	15V
Compensated temp. range	- 10~60ºC
Operation temp. range	- 20~80ºC
Safe overload	120% F.S.
Ultimate overload	150% F.S.
Cable size	Ø3×1500mm
Protection class	IP65
Cable color code	Input: Red(+) Black(-); Output: Green(+) White(-);

Size and capacity:

Column Type Rotary Static Torque Sensor Aluminum Load Cell 1Nm To 150Nm 0

Schematic Wiring Diagram :

Column Type Rotary Static Torque Sensor Aluminum Load Cell 1Nm To 150Nm 1

Column Type Rotary Static Torque Sensor Aluminum Load Cell 1Nm To 150Nm 2
