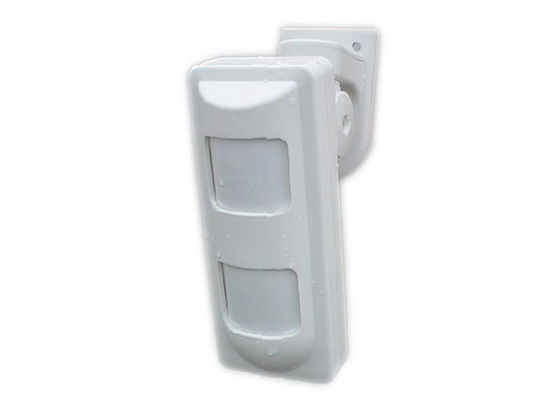

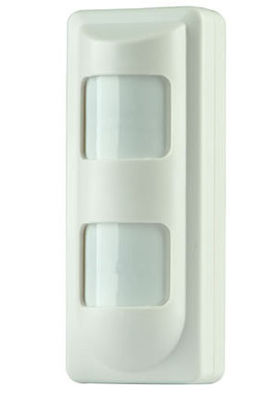

2 PIR And MW Outdoor Alarm Motion Detector With Anti - mask , Pet Immunity

2 PIR And MW Outdoor Alarm Motion Detector With Anti - mask , Pet Immunity

  • 2 PIR And MW Outdoor Alarm Motion Detector With Anti - mask , Pet Immunity
  • 2 PIR And MW Outdoor Alarm Motion Detector With Anti - mask , Pet Immunity
  • 2 PIR And MW Outdoor Alarm Motion Detector With Anti - mask , Pet Immunity
2 PIR And MW Outdoor Alarm Motion Detector With Anti - mask , Pet Immunity
Product Details:
Place of Origin: China
Brand Name: Sunlit
Certification: CE, FCC, RoHs
Model Number: WOP-680D
Payment & Shipping Terms:
Minimum Order Quantity: 2
Packaging Details: Gift box/ White box
Delivery Time: 3-15days after payment
Payment Terms: FOB Shenzhen
Supply Ability: 20000/month
Contact Now
Detailed Product Description
Power: 3.6V1/2AA *2 Lithium Battery Waterproof Level: IP65
Pet Immunity: 20kg Detection Distance: 12m 110°
High Light:

motion detector alarm

,

portable motion detector alarm


WOP-680D is an outdoor wireless dual-tech motion detector specially for short-distance detection. It adopts four-element PIR sensor, plane MW sensor, double-layer filtering system and MCU signal processing technology to prove its stability in anti white light and other external interference. It is suitable for any outdoor environment needs protection. Its super low power-consumption design guarantees 2 years battery life for normal operation.


Function:
* Four element PIR detection technology
* Plane microwave detector
* Adopt intelligent multigrade signal processing and complete analysis to various kinds of false alarm
* External 12VDC power for option, no conflict to battery
* Professional water proof design, suitable for outdoor operation
* Double-layer filtering system and digital pet immunity up to 20kg
* High/low sensitivity for option
* Unique temperature compensation for option
* Modularized wireless signal transmission design, can offer different frequency coding per client's requirement

Specification:

Operation voltage 3.6V*2 1/2AA non-chargeable Lithium battery
Operation current 45µA
Detection distance 12m
Sensor unit Four-element PIR sensor plane MW sensor
Installation height 1.8m.-2.4m
Sensitivity High/low for option
Anti RFI/EMI >30V/m 500MHz
Alarm output PT2262,EV1527 or OEM
Transmission frequency 315/433/868M
Wireless distance 300m(Open area)
Operation temperature -20ºC/+40ºC
Operation humidity 5%-95%(RH)
Anti white light >10000LUX
Detection speed 0.2m/s to 3.5m/s
Pet immunity 20Kg max
