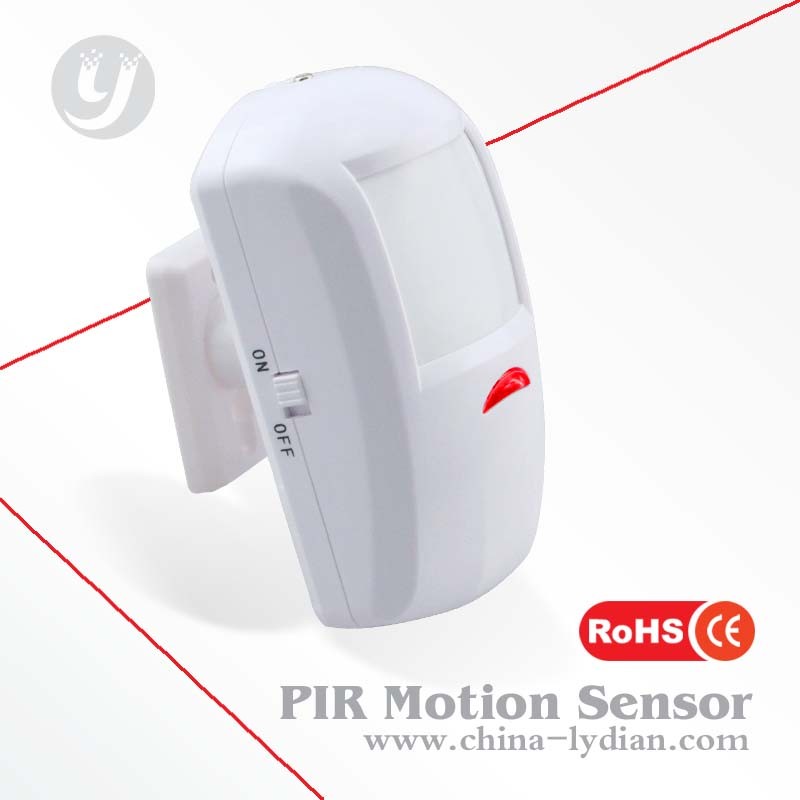

Wireless Infrared PIR Motion Sensor Detector For Security Alarm System

Wireless Infrared PIR Motion Sensor Detector For Security Alarm System 433 MHz

Introductions:

* MCU control

* Low power alarm

* Automatic temperature compensation technology

* SMT design, anti-RFI & anti-EMI

* Lowest consumption,

* Long service time of battery

* Wireless alarm signal: 315MHz, 433MHz

Specifications:

* Working voltage: 9V

* Static current: ≤20Ua

* Emission current: ≤25mA

* Detection distance: 12m/8m (wide angle/ curtain)

* Emission distance≥150m (open area)

* Detector angle: 110°

* Operating temperature:-10-+50°C

* Emission frequency: 315MHz, 433MHz
