Name: Waterproof Ultra - Compact Thermal Imaging Camera For Home Inspection
Brand: DALI
SKU: S230
Rating: 4.5 (163 reviews)

Home Products Smoke and Co Detector

Waterproof Ultra - Compact Thermal Imaging Camera For Home Inspection

Product Details:

Place of Origin:	Zhejiang, China (Mainland)
Brand Name:	DALI
Certification:	CE
Model Number:	S230

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	basis on incasement request
Delivery Time:	2-4 weeks
Payment Terms:	L/C,T/T
Supply Ability:	200 Unit/Units

Contact Now

Detailed Product Description

Highlight:

infrared thermal imaging camera

ir security camera

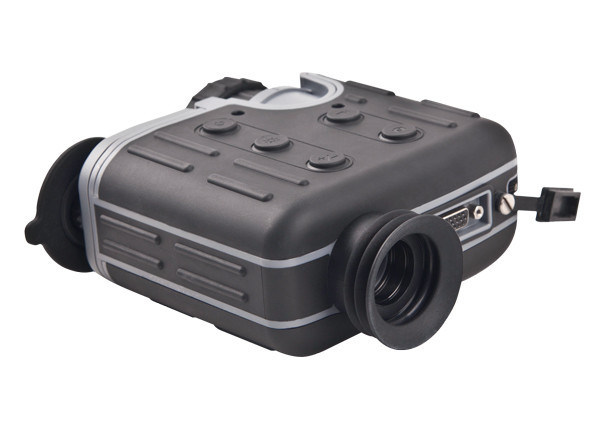

Waterproof Ultra - Compact Thermal Imaging Camera For Home Inspection

Quick Detail:

Place of Origin: Zhejiang, China (Mainland)

Brand Name: DALI

Model Number: S230

Usage: Security

Theory: Infrared Thermometer

Detector type: Un-cooled FPA micro-bolometer

Array size: 384X288.

Lens option: 18mm/37mm

Thermal sensitivity: ≤0.08°C@30°C

Frame frequency: 50Hz.

Focus: manual

Zoom: X2

Spectral range: 8-14um

Encapsulation: IP67

Description:

S230 produces a crisp image in the darkest of nights. Thanks to the S230, security professionals, law enforcement officers and hunters can see suspects in total darkness, through smoke, and light foliage. S230 is excellent tools for walking patrols that need to secure industrial sites or borders, customs and law enforcement officers and all others that need to see what is happening in total darkness, in all weather conditions, without being seen themselves.

Applications:

Marine navigation

Personal security

Border surveillance

Hunting

Law enforcement

Technical specification:

Items		S230-18	S230-37
Detector	Detector type	Uncooled FPA microbolometer
	Spectral range	8 - 14 µm
	Array size	384×288
	Pixel size	25um
Image characteristics	Lens	18mm/F1.1	37mm/F1.1
	FOV	30.5°×22.9°	14.8°×11.1°
	IFOV	1.38mrad	0.67mrad
	NETD	≤80mk@30℃
	Focus	Manual
	Frame rate	50Hz
Display	Display	Binocular OLED,800×600
Image storage	Storage card	2G TF
	Storage mode	Picture/Video
	File format	JPEG/MPEG4
	Storage capacity	More than 1000 images/100 mins of video
Function	Image adjustment	Manual
	Calibration	Manual
	Polarity inversion	White/Black hot mode
	Digital zoom	2X
Power supply	Battery type	Li-Ion,Rechargeable
	Battery operating time	3 hours continuous operation
	Charging system	Intelligent charger
	Power consumption	≤4.5W
Environmental conditions	Operating temp	-20℃～+50℃
	Storage temp	-45℃～+70℃
	Humidity	≦90％(non-condensing)
	Encapsulation	IP67
	Drop resistance	1.8m
Physical	Weight	≤950g
	Dimension	172(L)mm×139(W)mm×64(H)mm
Interface	External Power	Y(DC10-15V)
	Video out	PAL,75Ω
	Data transmission	Min-USB
	Tripod mounting	1/4"-20-UNC
Detection range	Human(1.8*0.5)m	650m	1330m
	Vehicle(2.3*2.3)m	830m	1700m
Recognition range	Human(1.8*0.5)m	210m	440m
	Vehicle(2.3*2.3)m	415m	850m
