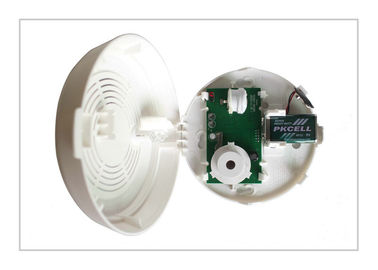

Photoelectric and Heat Combo / Combination Smoke And Co Detectors With DC Power



Quick details



* 9V battery operated
* Photoelectric and electrochemistry Sensor
* Test and reset Button
* With factory price



Specifications;



  Loud 85 decible alarm.



*  Permanant carbon monoxide sensor.



*  Powered by one 9V battery.



*  The alarm sound pattern is pulsed four short alarm beeps for co alarm and continuous beeps for smoke       alarm.

    The sound pattern is smoke pattern as co and smoke occur simultanously. The red LED will flash while in  alarm mode.



*  One 'chrip" every 30 seconds is an indication that the battery is low (Need replacement) or the unit is         malfunctioning.



*   Test Button to test units monthly.



*   Green and red LED light that indicate normal operation and alarm status.



*   The unit will sound ‘chrip" and red LED flashes once as powered up.





Description:





* Power Supply: One 9V carbon Zinc Battery



* Sesitivity Setting:

       Co: alarm density:

             30ppm, alarm not activate within 120 minutes

             50ppm, alarms within 60-90 minutes

             100ppm, alarms within 10-40 minutes

             300ppm, alarms within 3 minutes

       Smoke: 1%-5%/FT OBS



* Standby Current: <25uA



* Alarm Current: < 45mA



* Operation Ambient condition: 5-40 degree and 20%-90% R.H.



Technical Parameters:





Working Voltage	9V battery Operation
Sensor	Photoelectric and Heat
Working Temp. Range	-10°c ~ +50 °c
Humidity Range	10% ~ 95% Relative Humidity (RH)
Alarm Output	Sound&Flash Alarm; 85dB/3m
Alarm Sensitivity	Smoke Sensitivity: 2.06%/ft, Temperature trip point: Fixed 135°F(57°C)
Static Current	≤10uA
Alarm Current	≤35mA
Dimension	120Φ*38mm
