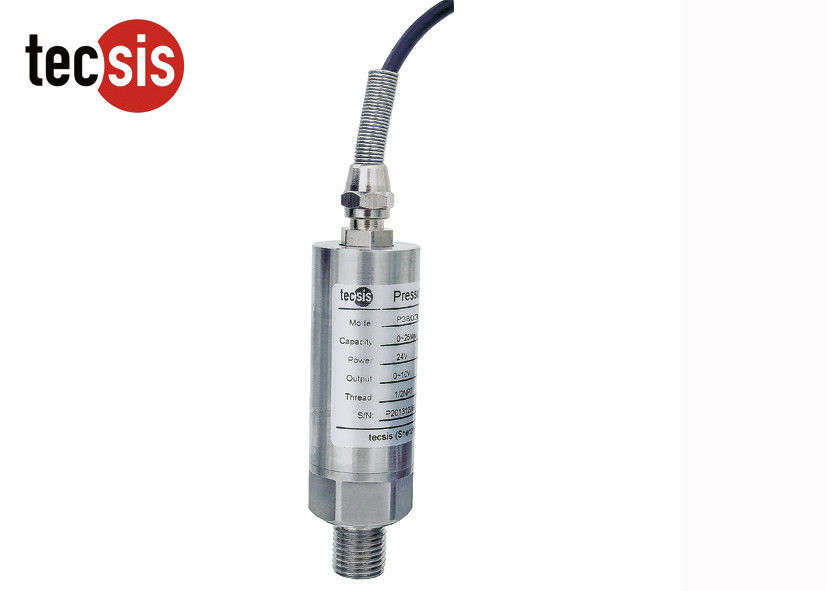

Industrial Force Hydraulic Pressure Sensor Of Stainless Steel , High Precision

Industrial Force Hydraulic Pressure Sensor Of Stainless Steel , High Precision

  • Industrial Force Hydraulic Pressure Sensor Of Stainless Steel , High Precision
  • Industrial Force Hydraulic Pressure Sensor Of Stainless Steel , High Precision
Industrial Force Hydraulic Pressure Sensor Of Stainless Steel , High Precision
Product Details:
Place of Origin: China
Brand Name: tecsis
Model Number: F1821
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Standard: carton
Delivery Time: Stock product:3~5 working days , No stock:10~35 days
Payment Terms: L/C, T/T
Supply Ability: 20,000pcs per month
Contact Now
Detailed Product Description
Product Name: F1821 Diameter: 50mm
Material: Stainless Steel Customized: Acceptable
Capacity: 20kg~10t OEM/ODM: Acceptable
Protection Class: IP66 Usage: Force Measurement
High Light:

strain gauge pressure sensor

,

capacitive pressure sensor

Industrial Force Hydraulic Pressure Sensor Of Stainless Steel , High Precision





Features :

  • Model:P3803
  • Hydraulic pressure sensor
  • High comprehensive precision, high stability
  • Capacity:100kPa~60MPa
  • Made of stainless steel



Description:



P3803 hydraulic pressure sensor is Made of stainless steel, It has a small size and with high sensitivity. It is suitable for  Hydraulic, die-casting, central air conditioning system, constant pressure water supply, locomotive braking systems, light industry, machinery, metallurgy, petrochemical, environmental protection, air compressor and other automatic control systems.



Applications:



It is suitable for  Hydraulic, die-casting, central air conditioning system, constant pressure water supply, locomotive braking systems, light industry, machinery, metallurgy, petrochemical, environmental protection, air compressor and other automatic control systems.





Technical parameters:



Specifications

Technique

Output signal

2 wires

4~20mA

3 wires 0~5V, 1~5V, 0~10V
4 wires 0~10mV
Comprehensive accuracy 0.25~0.5% F.S.
Power supply 5~10VDC( Sensor)
12~30VDC(Transmitter)

Medium temperature

-20ºC~85ºC
-20ºC~150ºC(Option)

Ambient temperature

-20ºC~85ºC

Load resistance

Voltage type ≥50kΩ
Current type ≤800Ω

Insulation

≥5000MΩ / 50VDC

Response time

10ms

Protection class

IP65

Long term stability

0.1% F.S./ Year

Vibration effects

Impact is less than 0.2% F.S.

Electrical interface

M12×1
Direct wireØ5x1500mm

Hessman lines
Customized

Thread connection

M12×1,Check the selection table



























































Size and capacity:



Industrial Force Hydraulic Pressure Sensor Of Stainless Steel , High Precision 0
