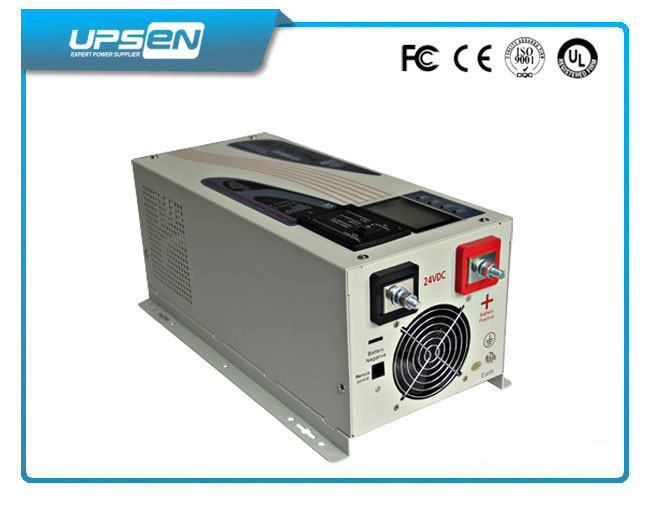

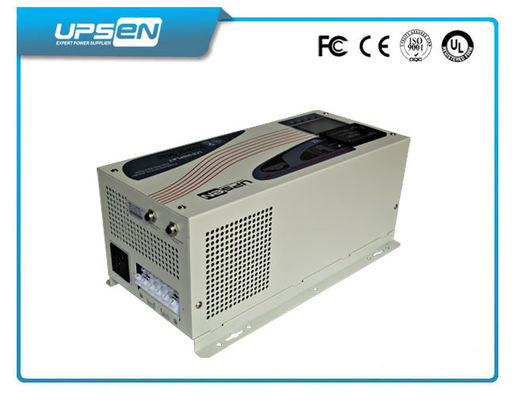

Pure Sine Wave Solar Power / Wind Power Inverter 1Kw - 12Kw with LCD / LED Display

Pure Sine Wave Solar Power / Wind Power Inverter 1Kw - 12Kw with LCD / LED Display

  • Pure Sine Wave Solar Power / Wind Power Inverter 1Kw - 12Kw with LCD / LED Display
  • Pure Sine Wave Solar Power / Wind Power Inverter 1Kw - 12Kw with LCD / LED Display
Pure Sine Wave Solar Power / Wind Power Inverter 1Kw - 12Kw with LCD / LED Display
Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Power Star Series 1-12Kw
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Waveform: Pure Sinewave Output Power Factor: 1
Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: LCD/LED H.S. Code: 8504403090
High Light:

solar power inverter for home

,

all in one Inverter



Pure Sine Wave Solar Power / Wind Power Inverter 1Kw - 12Kw with LCD / LED Display

Model: Pure Sine Wave Inverter Charger Power Star Series 1KW-12KW (1ph in/1ph out)


Inverter Quick Overview

1: Solar Power Inverter with 12VDC 24VDC 48VDC to 110Vac 120Vac or 220Vac 230Vac 240Vac

2: Inverter with Bypass Function

3: Inverter with overload over charging and low battery protection

4: Inverter Automatically transfer between battery and line modes



Key Features


Pure sine wave output (THD<3%), available for sensitive loads

High efficiency up to 95% under line mode, and 88% for Battery Mode
Fast and powerful charger with 35A and 70A

4-step progressive charging, 7 battery type selector
Accept generator’s energy output
Automatically transfer between battery and line modes
Microprocessor control guarantees high reliability
Bypass without battery connected
Remote control function
Protection against:Over load, over temperature, over charging, low battery
Reverse connection(optional by hard connector)
Blackouts



Application



UPSEN Power Srar Inverter can be used for various home appliances, office equipment, solar power system, and other equipments which use single phase power.



Power Star Series

Model No.

PS1000

PS2000

PS3000

PS4000

PS5000

PS6000

Nominal Power

1000W

2000W

3000W

4000W

5000W

6000W

AC Input

Waveform

Pure Sine Wave

Voltage

120VAC/230VAC

Acceptable Voltage

194-243VAC164-243VAC(wide mode)

Line Low Transfer

85V±4%/184(154 wide mode±4%)

Line Low Return

95V±4%/194(164 wide mode±4%)

Line high Transfer

135V±4%/253±4%

Line high Return

127V±4%/243±4%

Frequency

50Hz or 60Hz (Auto sensing)

Line Low Transfer

47Hz for 50Hz, 57Hz for 60Hz

Line high Transfer

55Hz for 50Hz, 65Hz for 60Hz

AC Output

Waveform

 Pure Sine Wave(bypass mode sync to input)

Voltage

120/220/230/240VAC(bypass mode sync to input)

Voltage Regulation

±10%rms(bypass mode sync to input)

Frequency

50Hz±0.3Hz(bypass mode sync to input)

Peak Power

3 times of rating power

Short Circuit Protection

Yes,shutdown after 10ms

Power Factor

0.9-1.0

DC Input

Battery Voltage

12V/24V

12V/24V/48V

24V/48V

Minimum Start Voltage

10V for 12V,20V for 24V,40V for 48V

Low Battery Alarm

10.5V for 12V,21V for 24V,42V for 48V

Low Battery Transfer

10V for 12V,20V for 24V,40V for 48V

High Voltage Alarm

16V for 12V,32V for 24V,64V for 48V

Max Charging Current

35A/70A

Over Charge Voltage

15.7V for 12V,31.4V for 24V,62.8V for 48V

Transfer Efficiency

Line Mode

>95%

Battery Mode

>88%

power saver

Available when the load is less than 25 Watts

Indicators

7-LED Display

From the right to the left,LED1 line mode (green lighting),LED2 inverter mode

(green lighting),LED3 charging mode (yellow lighting),LED4 Fully charged

(green lighting),LED5 over heat shutdown (red lighting) ,LED6 Overloaded

shutdown (red lighting) ,LED7 Saving Mode (green lighting)

3-LED Display

Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting)

Switch selector

Saving Mode is on/off when push the switch forwards/backwards,   keeping it horisontal is turning the inverter off.

Audible Alarm

Sounding when the heatsink's tem is over 105℃ and shutdown after 30 seconds.

Protections

low battery,over charging,over temp,over load

Communications

RS-232/USB(custom-made)

Enviromental

Operating Environment

0-40℃,0-90%RH(non-condensing)

Audible Noise

<60dB

Physical



Net Weight(KG)

18

20

22

35

38

40

Dimension L*W*H(mm)

442*218*179mm

 598*218*179mm



* Specification is subject to change without prior notice.



Competitive Advantages:


1: Three Years' warranty for sinewave inverter, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products
