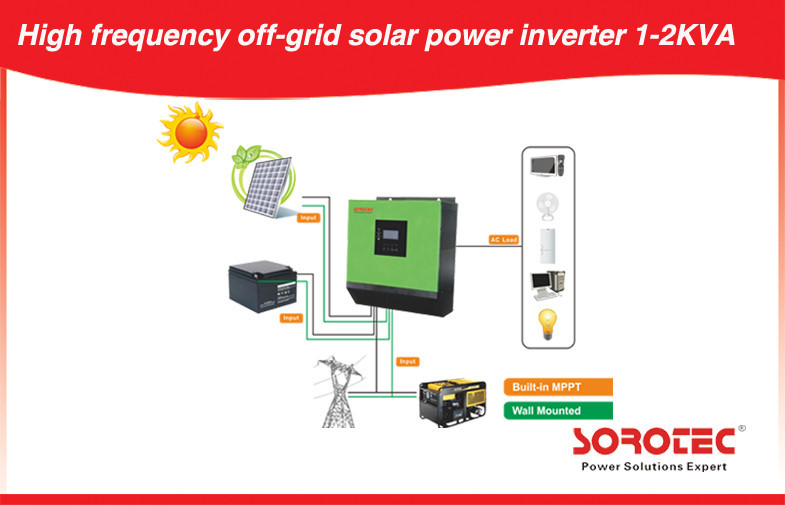

Solar Power System High frequency off-grid solar power inverter for home 1-2KVA

Solar Power System High frequency off-grid solar power inverter for home 1-2KVA

  • Solar Power System High frequency off-grid solar power inverter for home 1-2KVA
  • Solar Power System High frequency off-grid solar power inverter for home 1-2KVA
Solar Power System High frequency off-grid solar power inverter for home 1-2KVA
Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: IG3111C 1000-2000VA
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS (Inverter Sample Are Available)
Price: Price Negotiable
Packaging Details: Standard Exported Cartons and Pallets for Power Inverters
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping, L/C, T/T
Supply Ability: 50000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Contact Now
Detailed Product Description
Product Name: Power Inverter Power: 1-2KVA
Convertion: DC/AC Inverters Solar Controller: PWM Optional
Display: LCD&LED Application: Small Power Home Appliances

1000VA 720W 230VAC 60HZ 12VModified Sine Wave Power Inverters for Home Use



Full Automatic Silent Operation Power Inverter IG3111C 1-2KVA,which is a high frequency Modified Sine Wave Inverter,auto change AC to DC,LCD display,audible and visual alarm,input voltage range optional. Widely used to supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.



Key Features

1. High Frequency design Modified sine wave output.

2. PWM solar charge controller could be built-in.

3. Optional input voltage range.

4. Automatic charging,automatic restart.

5. Auto change AC-DC.

6. Three-steps intelligent charging control to recharging.

7. LCD display, audible and visual alarm.

8. Built-in with 10 or 20 Amp charger for up to 200Ah battery.



Full Protection

Protection for low battery voltage,overload,output short circuit and overtemperature

restrain surge interference,eliminate noise,protection for

thunderstriking,provide the reliable power to the home appliances



Product Descriptions of Solar Inverter

MODEL IG3111C 1000-2000VA (without solar controller) SSP3111C 1000-2000VA (with solar controller)
CAPACITY VA/W 1000VA/700W 1200VA/900W 2000VA/1500W 1000VA/720W 2000VA/1300W
NOMINAL BATTERY VOLTAGE 12VDC 12VDC 24VDC 12VDC 24VDC
LINE MODE
INPUT Nominal Voltage 230VAC
Voltage Range 170-280VAC (Narrow Range)
90-280VAC (Wide Range)
OUTPUT Voltage 230VAC
Frequency 50Hz or 60Hz
Output Waveform Following the Utility
EFFICIENCY >95% (full R load, battery full charged)
TRANSFER TIME 15ms Typical, 40ms Max.
BACKUP MODE
OUTPUT Voltage 230VAC (+10% / -18%)
Frequency 50Hz or 60Hz (Auto detection)
Output Waveform Modified Sine-wave
EFFICIENCY   >80%
OVERLOAD PROTECTION 1min@>110%,20s@>120%,0s@>150%
PROTECTION Discharge, over-charged, over-loading, over-temperature, short-circuit protection
BATTERY CHARGER (powered by AC)
CHARGING ALGORITHM 3-step charging
AC CHARGING MODE 15 Ampor 20Amp Selectable 10Amp 15 Ampor 20Amp Selectable 10Amp
FLOATING CHARGING VOLTAGE 13.7V 27.4V 13.7V 27.4V
OVERCHARGING VOLTAGE 16V 32V 16V 32V
SOLAR BATTERY CHARGER
MAX. INPUT POWER Non 450W 900W
CHARGING CURRENT Non 40Amp
NOMINAL BATERY VOLTAGE Non 12V 24V
OPTIMAL WORK VOLTAGE RANGE Non 15V~18V 30V~36V
MAX. PV INPUT VOLTAGE Non 55V
MAX. PV INPUT CURRENT Non 40 Amp
GENERAL
PHYSICAL Dimension (DxWxH) 275mm*226mm*85mm
Net Weight (kg) 2.05 2.15 2.2 2.62 2.76
ENVIRONMENT Operating Environment 0- 50°C, 5%-90 % relative humidity (non-condensing)
StorageEnvironment -15°C to 55°C, 5% to 95% humidity (non-condensing)
Noise Level Less than 50dB



Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.



Why Choose Us?



1, QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.

2, Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.



   Solar Power System High frequency off-grid solar power inverter for home 1-2KVA 0

How to choose suitable inverter?



If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.



For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.



Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power

.......................................................................................................................................................................

How connection between batteries and an power inverter?



We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions



 How do I choose the size of the inverter?



Different types of load demand for power are different. You can view the load power values to determine the

size of the power inverter.



Notice:



Resistive load: you can choose the same power as the load.



Capacitive loads: according to the load, you can choose 2-5 times power.



Inductive loads: according to the load, you can choose 4-7 times power.

.......................................................................................................................................................................



How to calculate the load of working hours requires configuration of the battery size?



We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................
