    Product Details:

    Place of Origin: China
    Brand Name: Sunlit
    Certification: CE
    Model Number: OSD-40DP-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1-99
    Price: Negotiable
    Packaging Details: Gift box/ White box
    Delivery Time: 1-15days after payment
    Payment Terms: FOB Shenzhen
    Supply Ability: 50000/month
    Contact Now
    Detailed Product Description

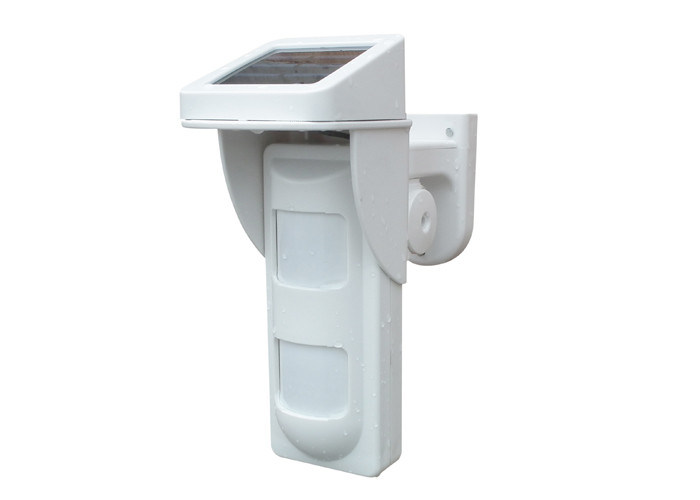

    Cutain style outdoor solar-powered detector, 315/433 MHz selectable, 12 x 3m detection range

    Intelligent solar recharge technology of outdoor solar-powered detector

    Intelligent solar recharge technology of outdoor solar-powered detector







    Features:
    1. independent dual element PIR detection technology, adopts fuzzy logic digital processing technology
    2.Unique full-range temperature compensation technology,
    3.Intelligent solar recharge technology
    4.Pure wireless transmitting structure, convenient installation
    5.Super province electricity design, completely solve the power supply shortage problem
    6.Built-in expansion mouth,  with a variety of wireless control panel compatible
    7.Pulse count optional

    Power Supply
    1.2V*3 AAA Ni-MH chargeable battery (Recommended
    Panasonic or Sanyo battery,single battery capacitor≥800mA)
    Operation power
    Static:100uA; alarm:30mA
    Installation height
    1.5m=2.4m
    Alarm lasting time
    3s
    Anti RFI-EMI
    0.1-500MHz/3Vm
    Anti white light
    >10000Lux
    Operation temperature
    -20℃/+55℃
    Operation humidity
    95%RH
    Detection speed
    0.2m/s to 3.5m/s
    Tranasmission frequency
    315/433 MHz for option
    Tranasmission distance
    ≥200m (open air,no interference)
    Low battery indication
    When the voltage is below 3.3V,detector will send out alarm signal automatically
    Temperature compensation
    Hyperbola compensation structure
