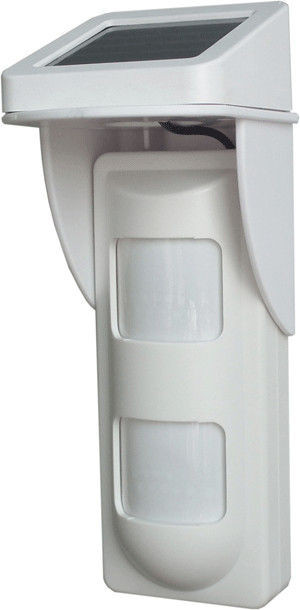

IP-65 Water Proof Outdoor Wireless Infrared Sensor With pet immunity lens for option

IP-65 Water Proof Outdoor Wireless Infrared Sensor With pet immunity lens for option

IP-65 Water Proof Outdoor Wireless Infrared Sensor With pet immunity lens for option

Product Details:

Place of Origin: China
Brand Name: GS
Certification: ISO
Model Number: OSD-40DP

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Contact Now
Detailed Product Description

Water Proof Outdoor Wireless Infrared Sensor , Solar-Power Detector OSD-40DP



Specifications:

1. Power Supply: 1.2V*3 AAA Ni-MH chargeable battery (Recommended Panasonic or Sanyo battery, single battery capacitor≥800mA)

2. Operation power: Static:100uA; alarm:30mA

3. Installation height: 1.5 to 2.4m

4. Alarm lasting time: 3 seconds

5. Anti RFI-EMI: 0.1 to 500MHz/3Vm

6. Anti white light: >10,000 Lux

7. Operating temperature: -20 to +55℃

8. Operating humidity: 95% RH

9. Detection speed: 0.2 to 3.5m/second

10. Transmission frequency: 315/433MHz for option

11. Transmission distance: ≥200m (open air, no interference)

12. Low battery indication: When the voltage is below 3.3V,detector will send out alarm signal automatically

13. Temperature compensation: hyperbola compensation structure



Features:

1. independent dual element PIR detection technology, adopts fuzzy logic digital processing technology
2.Unique full-range temperature compensation technology
3.Intelligent solar recharge technology, IP65 water proof, pet immunity lens for option!
4.Pure wireless transmitting structure, convenient installation
5.Super province electricity design, completely solve the power supply shortage problem
6.Built-in expansion mouth,  with a variety of wireless control panel compatible, connectable to all wired control panels through our REC-4CH receiver
7.Pulse count optional
