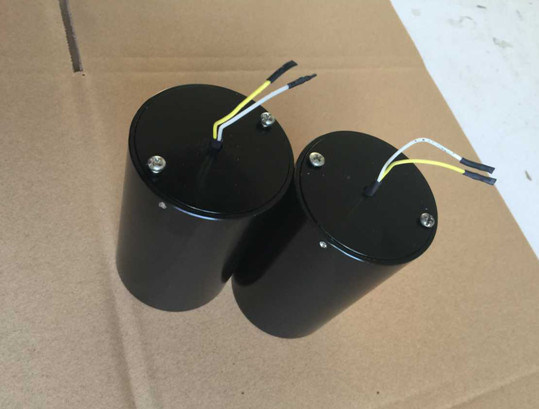

Quota precise Three High sensitivity detector Geophone Sensor GD(H)-1-100

Quota precise Three High sensitivity detector Geophone Sensor GD(H)-1-100

  • Quota precise Three High sensitivity detector Geophone Sensor GD(H)-1-100
Quota precise Three High sensitivity detector Geophone Sensor GD(H)-1-100
Product Details:
Place of Origin: China
Brand Name: GUANGDA
Model Number: According to the specifications
Payment & Shipping Terms:
Price: negotiation
Packaging Details: Carton (the size is determined by the number of purchases)
Delivery Time: The decision by the purchase quantity, generally for 5 days after receipt of payment
Payment Terms: FOB
Contact Now
Detailed Product Description
High Light:

geophones sensor

,

seismic survey equipment

Three High sensitivity detector High Sensitivity Sensor GD ( H ) -1 - 100


Fast detailed description:

1 quota precise
2 Reasonable design
3 wide frequency band
4 signal received is plentiful
5 low distortion
6 property superiority and stable
7 Applied to all precise seismic exploration test methode


Application:

petroleum exploration


Specifications :



Parameter/mode

GD(H)-4-100

GD(H)-4.5-100

GD-10J-100

GD-ONE

GD-10-100

GD(H)-1-630

GD(H)-1-100

 Natural Frequency(Hz)

4+0.2-1

4.5±0.5

10±5%

10±3.5%

10±5%

1 ±10%

1 ±10%

Coil Resistance(Ω)

4100±5%

4100±5%

3500±5%

1800±3.5%

3500±5%

33000±10%

3300±10%

Sensitivity(V/m/s)

100±5%

100±5%

100±5%

78.7+5%-3%

100±5%

630±10%

200±5%

Damping

0.72±5%

0.72±10%

0.5±5%

0.70±5%

0.5±5%

0.36±10%

0.36±10%

Distortion(%)

≤0.2

≤0.6

≤0.2

≤0.15%

≤0.2

≤0.6

≤0.6

Frequency response(±3dB)

5-1000Hz

5-1000Hz

10-1000Hz

10-1000Hz

10-1000Hz

1-300Hz

1-300Hz

Max.Motion(mm)

4

4

2

2.54

2

6

6

Moving Mass(g)

11.3

11.3

11.3


11.8



11.3


770

770

Dimensions(d×h)mm

25.4×36

25.4×34

25.4×34

27.5×36

25.4×34

65X107

65X107

Temperature Range()

-40~+100

-40~+100

-40~+100

40~100

-40~+100

-40~+100

-40~+100

Warranty Period(Year)

3

3

3

3

3

2

2




Competitive advantage:

Full range of products,Multiple types,Good quality,Direct manufacturers low price,A perfect after sale service
