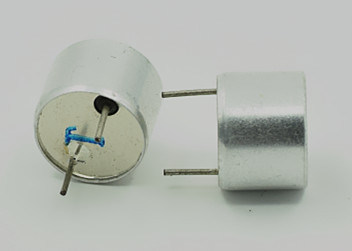

Name: 10mm Distance Meter Wireless Long Range Ultrasonic Sensor Open Structure with Aluminum Case
Brand: Shenzhen Jingyu Technology Co., Ltd.
SKU: MSO-AT1040H07R
Price: 0.20 USD
Availability: InStock

Nhà Sản phẩm Wireless Burglar Alarm Systems

10mm Distance Meter Wireless Long Range Ultrasonic Sensor Open Structure with Aluminum Case

Thông tin chi tiết sản phẩm:

Place of Origin:	Jiangsu China
Hàng hiệu:	MANORSHI
Chứng nhận:	ISO, CE, ROHS
Model Number:	MSO-AT1040H07R

Thanh toán:

Minimum Order Quantity:	500PCS
Giá bán:	USD0.2 - USD0.4
Packaging Details:	Standard export package
Delivery Time:	1-3 weeks
Payment Terms:	L/C, T/T, By Paypal, Western Union
Supply Ability:	10000000pcs/Month

Tiếp xúc

Chi tiết sản phẩm

Product Name:

Long range Ultrasonic sensor

Material:

Aluminum

Using Method:

Separate transmitter or receiver.

Center Frequency:

40kHz

Làm nổi bật:

long range distance sensor

ultrasonic range sensor

10mm Distance Meter Wireless Long Range Ultrasonic Sensor Open Structure with Aluminum Case

Quick details:

1. Dimension: 9.8mm(D)*7.0mm(H)

2. Center frequency :40.0±1.0KHz

3. Using Method: Separate transmitter or receiver.

4. Construction:open structure type
5. Directivity Deg :80°±15° (-6dB)
6. Sensitivity:-68dB min
7. Capacitance :2200±20%pF

8. Sound Pressure Level :110dB min

9. Max.Input Voltage:40Vp-p

10. Typical Sensing Range : 0.2~15m
11. Operating Temperature :-20℃ ~+70℃
12. Storage Temperature:-40℃ ~+85℃

Drawing (mm)

10mm Distance Meter Wireless Long Range Ultrasonic Sensor Open Structure with Aluminum Case 0

Application

- Remote Control

- Automatic doors

- Burglar and disaster detection alarm

- Distance meter and range finder

The main function of the ultrasonic sensor are transmitting and receiving. Ultrasonic sensors provide easy method of distance measurement. defined as electronic devices that emit an acoustic wave beyond the upper range of human hearing called the audible range, between 20 hertz and 20 kilohertz and determine the distance between the sensor and an object based on the time it takes to send the signal and receive the echo. generic distance measurement, and commercial fish finders, among other applications.
