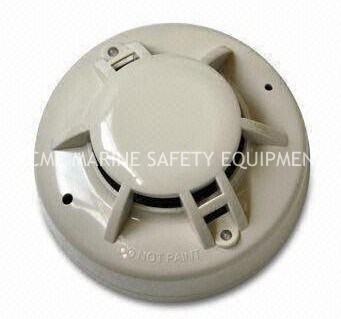

Name: Fire alarm smoke and heat detector
Brand: Shenzhen Jingyu Technology Co., Ltd.
SKU: CCME
Availability: InStock

Fire alarm smoke and heat detector

جزئیات محصول:

پرداخت:

مخاطب

توضیحات محصول جزئیات

برجسته کردن:

fire smoke detector ,fire smoke detector ,fire smoke detector

Fire alarm smoke and heat detector en14604 standard

Technical parameters:

Executive standard	GB 4715-2005,GB4716-2005
Operating voltage	24V (pulse modulation)
Operating current	≤0.5mA (monitoring status)
Sensing technology	the use of photoelectric sensors and temperature sensors dual sensor technology, thermal type: A2
Weight	about 100g
Encoding	Electronic, coding range is 1 to 324
External dimensions	diameter: 100mm, height: 55mm (with the base)
Wiring	Promise of wire
LED	red, blinking about once every 12 seconds when the patrol, alarm always
Operating environment	Indoor, temperature: - 10 °C ~ +50 °C ; relative humidity: ≤95% (40°C±2°C, without condensation)
Installation height	≤8m
Shell Material	ABS
Protection area	About 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System.
Matched host machine	fire alarm control panel (such as AW-AFP2188)
