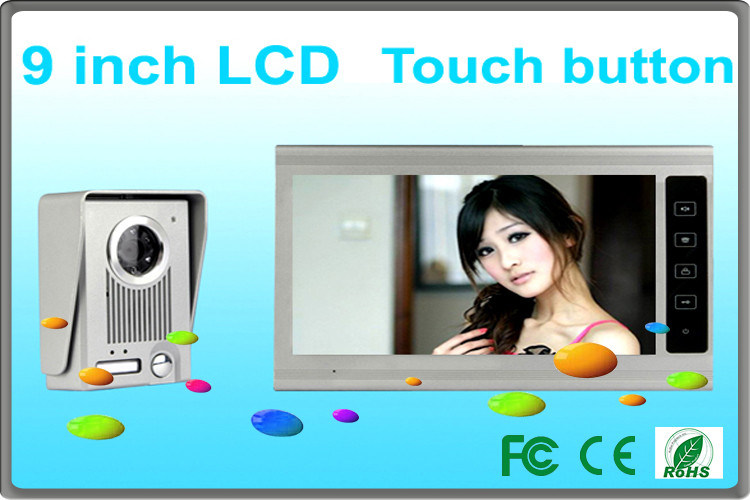

Beautiful and upscale design, villa intercom system hands free and ultra-thin design.
Metal outdoor unit, strength shock resistance,
Outdoor unit with waterproof function.
CMOS color camera, Wide angle lens and IR night version camera.
Indoor unit is luxury appearance with wire-drawing aluminum deck, Ultra-thin design, strength shock resistance
9 inch color TFT LCD indoor unit, hands free. with touch keypad control.
Calling out, surveillance, open door, talking and door bell etc. function.
5 Chord music ring
Four wires connect outdoor
Resolution more than 380TV line
Working voltage 110-240V
Video output PAL or NTSC
Indoor phone size: 243*160*27mm
Installation: Wall mounted or Desktop
Specifications:
Outdoor Unit:
Metal shell outdoor unit, With waterproof function
Camera: CMOS 300K pixels
Night Version: 6 IR LED lights, visible within 1 meter
Input Power: AC100~ 240V, 50/60Hz
Output: DC12V
Installation: Wall mounted
Outdoor unit size: 134*94* 45mm
Indoor Unit:
Metal shell indoor unit, hands free . with touch keypad control
Screen: 9 inch TFT LCD screen
Resolution: more than 380TV line
Menu Language: Chinese, English;
Input Power: AC100~ 240V, 50/60Hz
Output: DC15V
Standby current: 20mA, Work current: 30mA.
Ringing sound level: more than 70db(A)
Adjustable button: contrast, brightness, volume
Video output: PAL or NTSC
Installation: Wall mounted or desktop
Indoor phone size: 243*160* 27mm
Working Temperature: -20°C - 55°C
