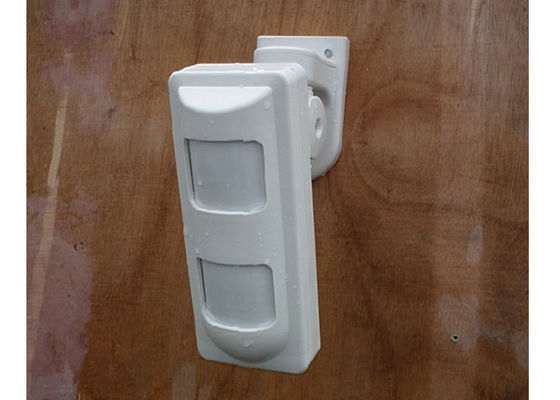

Outdoor Wireless Infrared Sensor with Independent dual-element 2 PIR detection

Outdoor Wireless Infrared Sensor , Dual PIR Detector

Specifications:

1. Installation height: 1.5 to 2.4m

2. Alarm lasting time: 3 seconds

3. Power supply: 12V DC

4. Operating power: Static: 100uA Alarm: 30mA

5. Anti RFI-EMI: 0.1 to 500MHz/3Vm

6. Anti white light: >10,000 Lux

7. Operating temperature: -20 to +55℃

8. Operating humidity: 95% RH

9. Detection speed: 0.2 to 3.5m/second

10. Transmission frequency: 315/433MHz for option

11. Transmission distance: ≥200m (open air, no interference)

12. Temperature compensation: hyperbola compensation structure

Features:

1. Independent dual-element 2 PIR detection, adopts fuzzy logic digital processing technology

2. Particular PIR lens and filter with anti UV and strong sunshine, IP65 waterproof design, fits for fully outdoor installation

3. Unique full-range temperature compensation technology, stable detection distance

4. Pure wireless transmitting up to 200m, convenient installation, 315/433/868MHz for option

5. Super 12V DC + built-in NiMH batteries design, detector can work more than 30 days even if there is no electric power

6. Remarkable circuit design can match various kinds of wireless and wired control panels

7. Pulse count (optional)
