Wired Outdoor Microwave Dual-PIR Motion Detector,Burglar Alarm motion detector

Wired Outdoor Microwave Dual-PIR Motion Detector,Burglar Alarm motion detector

  • Wired Outdoor Microwave Dual-PIR Motion Detector,Burglar Alarm motion detector
Wired Outdoor Microwave Dual-PIR Motion Detector,Burglar Alarm motion detector
Product Details:
Place of Origin: China
Brand Name: AMIDA
Model Number: AMD-05 Wired Outdoor Microwave Dual PIR Motion detector
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: N/B
Packaging Details: Neutral color packing/OEM
Delivery Time: 3 days
Payment Terms: T/T,Western union
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
High Light:

Burglar alarm motion detector

,

Wired Outdoor Microwave Dual-PIR Motion Detector

,

Wired outdoor detector

AMIDA Wired Outdoor Microwave Dual-PIR Motion Detector, Burglar Alarm motion detector,Outdoor wired PIR detector,wired detector

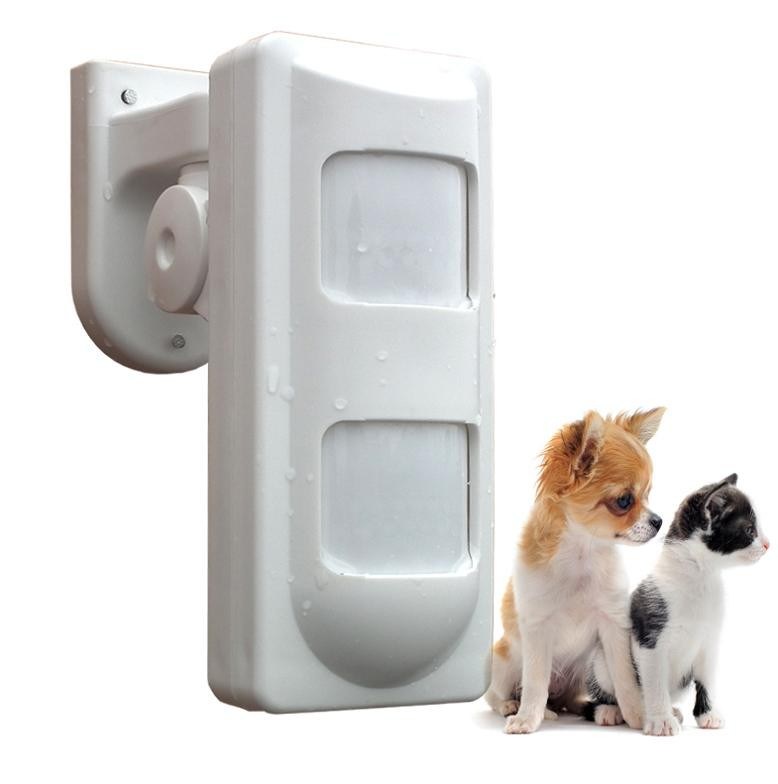

The Wired Outdoor Microwave Dual PIR Motion detector is an INPUT DEVICE, The AMD-05 Wired Outdoor Microwave Dual PIR Motion detector is designed to provide detection of criminal intrusion through perimeter into a protected area by sensing both of infrared energy (heat) emitting and movement from an intruder's body moving through a protected area
to eliminate false alarm. The user can choose detection by PIR sensor or microwave to detection according to the actual environment. The sensor also provides a tamper contact output and anti-mask to increase its reliability. Upon detection of intrusion, the AMD-05 Wired Outdoor Microwave Dual PIR Motion detector automatically generates an alarm signal to control panel. The unit is RF and EMI Immunity to interferences produced by radio device. The unit is can be wall-mounted by means of a bracket.

BRIEFINTRODUCTION:
1.Waterproof design for outdoor, IP Grade is IP65;
2.Built-in microwave sensor and 2 newly-developed dual element
3.passive infrared sensor unit, double reliable detection technology to
4.eliminate the false alarm;
5.Intelligent MCU inside, increased anti-light interference and eliminate false alarm;
6.Adopts specialized technology for anti-mask to increase its reliability;
7.Adopts Pet Immunity technology and specialized optical lens for eliminate false alarm;
8.Micro-controller temperature analysis and Automatic temperature compensation for best summertime detection;
9.Tightly-mated kit guard to protect the sensor optics from insects, spiders and dust;
10.Selectable detect sensitivity (High/Low) for different environmental requirements;
11.Tamper Switch for protecting the to avoid opened;
12.SMT adopted, RF and EMI Immunity;
13.Low power consumption.


SPECIFICATIONS

Operating Voltage 9~12VDC
Detection Range
Vertical angle 60degree, Horizontal angle 110 degree, 12m at
20°C.
Standby Current less than 25mA
Alarm Current less than 100mA
RF Immunity > 30V/m 0.1-500MHz
Sensitivity > 3300V/W
Noise(Vp-p) <;200mV, (mVp-p)(25°C)
Anti white light >10000Lux
Microwave Frequency 10.525GHz
Output Type NC or NO
Pet Immunity ≤35Kg
Temperature Range -20°C ~ +40°C
Relative Humidity 95% (25 ℃)
Installation Mode Wall mounted by bracket
Installation Height 1.8~2.4m
Detection Speed 0.3m/S~3.2m/S
Housing High-impact ABS
Dimensions 160x65x50.5mm (HxWxD)
Applications For outdoor applications, perimeter protection alarm systems.
