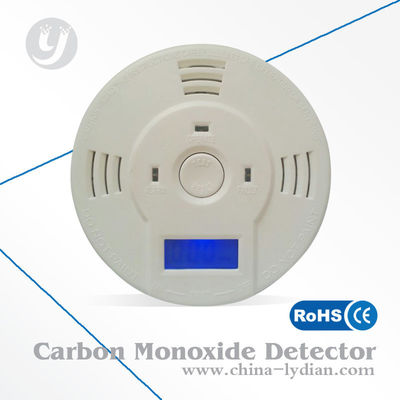

LCD Display CO Alarm Detector

LCD Display CO Alarm Detector

LCD Display CO Alarm Detector

Product Details:

Place of Origin: Guangdong, China
Brand Name: Lydian
Certification: CE
Model Number: LYD-810D

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Click to inquiry the latest price
Packaging Details: Gift Box or Blister Card
Delivery Time: 7-15 days after receipt of 30% T/T Deposit
Payment Terms: T/T,, Western Union
Supply Ability: 100000 Pieces per Month
Gift Box Size:: 135*45*140mm
Carton Size:: 710*520*300mm
Contact Now
Detailed Product Description
Usage: Carbon Monoxide Gas Leak Protection Unit Size: 107*44mm
Power Supply: DC 9V Battery Sensor: Electrochemistry CO Sensor
Alarm Sound: >85db At 10 Feet(3m) Standby Current: <10uA



LCD Display CO Alarm Detector





Instructions:



1.Electrochemical sensor
2.conforms to EN50291 & CE
3.Test/Hush Button
4.LCD displayer
5.Low Battery Alarm



Description:



This Carbon Monoxide Alarm is effective for detecting any buildup of carbon monoxide, also known as CO gas, in your home or office. The feature of your CO gas alarm includes:

* Self-Checking function

* Low-battery warning indicator;

* Self-Test Button to verify operation

* CO sensitivity meets EN50291 or UL2034

* Easy to install, move and maintain

* 5 years limited warranty for the CO-sensing unit;



Specifications:



* Power supply: DC9V

* The sensitivity and time:

     50ppm, alarm in 60-90 minutes

     100ppm, alarm in 10 ~ 40 minutes

     300ppm, alarm in 3 minutes

* Standby current:≤10uA "(LCD)," 5uA (LCD).

* Alarm current:≤25mA

* Displaying Range: 0-999PPM

* The electrochemical carbon monoxide sensors.

* LCD Displayer (optional): 4 digits LCD displayer

* Audibility: 85dB ( at 1m distance ), Frequency 3±0.5KHZ

* Led Indication /Sound Pattern:

  Standby: Green Led flashes once every 30 seconds

  Alarm: Red Led quickly flashes 4 times with unit chirping every 5 seconds, then repeat,

* Low-bat Indicator:

  Chirp every 30s as battery lower than 3.3V with green LED flashing and Lb on LCD



Applications:



The carbon monoxide alarm is the only battery-operated alarm that includes a back-light digital display feature. This key feature adds an advanced level of protection. The battery operated CO alarm includes multiple mounting options, allowing installation on a wall or tabletop.



This alarm has been carefully designed and tested to detect CO concentration in a residential environment. It provides continuous monitoring of CO levels, even during power outages when many CO incidents occur. The back-lit digital display feature allows for easy viewing of carbon monoxide levels from 30-999 PPM (parts per million).





Co alarm features:



    > Power supply: DC9V

    > The sensitivity and time:

       50ppm, alarm in 60-90 minutes

       100ppm, alarm in 10 ~ 40 minutes

       300ppm, alarm in 3 minutes

    > Standby current:≤10uA "(LCD)," 5uA (LCD)

    > Alarm current:≤25mA

    > Displaying Range: 0-999PPM

    > The electrochemical carbon monoxide sensors

    > LCD Displayer (optional): 4 digits LCD displayer

    > Audibility: 85dB ( at 1m distance ), Frequency 3±0.5KHZ

    > Led Indication /Sound Pattern:

       Standby: Green Led flashes once every 30 seconds

       Alarm: Red Led quickly flashes 4 times with unit chirping every 5 seconds,

then repeat

    > Low-battery Indicator:Chirp every 30s as battery lower than 3.3V with

green LED flashing and Lb on LCD



Competitive Advantage:

* Professional experience and ability to accept and fulfill ODM/OEM orders.

* Answer your enquiries, questions and emails in 24 hours

* Direct control on material, testing, quality, lead time ect.

* Flexible Payment terms ranged at different quantity

* One year warranty life for all detectors sold out from Lydian





Package Details:







LCD Display CO Alarm Detector
