Standalone Carbon dioxide detecto Monoxide Sensor With Screen

Standalone Carbon dioxide detecto Monoxide Sensor With Screen

Standalone Carbon dioxide detecto Monoxide Sensor With Screen

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Lydian
Certification: EN50291, CE
Model Number: LYD-810D

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: Negotiation
Packaging Details: Box Size:135*45*140 mm
Delivery Time: 7-15 days after receipt of 30%T/T deposit
Payment Terms: T/T, Western Union
Supply Ability: 100,000 PCS / Month
Contact Now
Detailed Product Description
Displaying Range: 0-999PPM Material: ABS Or Other Plastic
Power Supply: 3 * AA Size Lithium Batteries Unit Size: 107*44
Alarm Sound: >85db At 10 Feet(3m) Standby Current: <10uA
Alarm Current: <25mA

Standalone Carbon dioxide detecto Monoxide Sensor With Screen





Introduction:

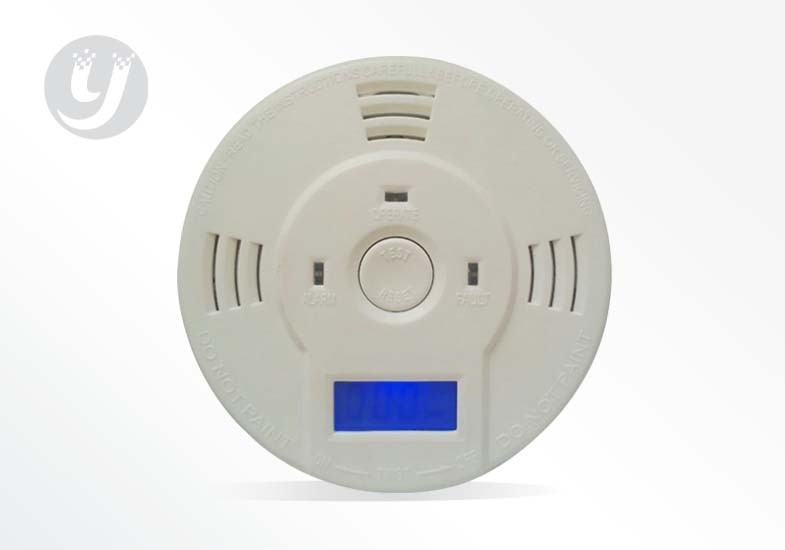

The carbon monoxide alarm is the only battery-operated alarm that includes a back-light digital display

 feature. This key feature adds an advanced level of protection. The battery operated

CO alarm includes multiple mounting options, allowing installation on a wall or tabletop.



This alarm has been carefully designed and tested to detect CO concentration in a residential

environment. It provides continuous monitoring of CO levels, even during power outages when many CO

incidents occur. The back-lit digital display feature allows for easy viewing of carbon monoxide levels

from 30-999 PPM (parts per million).





Technical specifications:



Power Supply: 3 * 1.5V AA batteries

Sensor: Electrochemical

Have test/Reset button

Alarm style: Per EN50291

Sensor Life: 5~7 years

Certificate: CE & EN50291

Free Warranty: 2 years

Sensitivity & Time:

50ppm, alarms within 60~90 minutes

100ppm, alarms within 10~40 minutes

300ppm, alarms within 3 minutes

LCD Displayer (optional): 3 digits LCD displayer
Audibility: 85dB ( at 1m distance ), Frequency 3±0.5KHZ

Standby Current: <50uA;

Alarm Current: <100mA

Operation Ambient Condition: 5~400C, 20~90%R.H.

Weight: 0.2Kg

Packing size: 135*45*140mm





Operation instructions:



Unit status   LED Alarm sound LCD display  Recommendation
  Power up   All LEDs flashes once   One chirp 888ppm then 000ppm for 180s  None
 Test Red LED flashes 4 times   4 beeps, 5s silence, repeating  0~999ppm  None
 Standby  Green Led flashes once every 30s  None   0~30ppm for 1s  None
 Co alarm Red LED flashes 4 times every 5s   4 beeps, 5s silence, repeating  30~999ppm  Refer to "what to do as alarm sound"
Low battery   Red LED flashes once every 30s  One chirp every 30s Lb  Replace all batteries
 Fault mode  Red/yellow LED flashes once every 30s  One chipr every 30s  Err

 Refer to "what to do in fault mode"





Package and delivery:



Master Carton Material: A=A Chipboard 710*520*300mm Qty: 100PCS N.W/G.W 21/22Kgs

Delivery time: 15 to 20 work days after confirmed your payment.

Standalone Carbon dioxide detecto Monoxide Sensor With Screen
