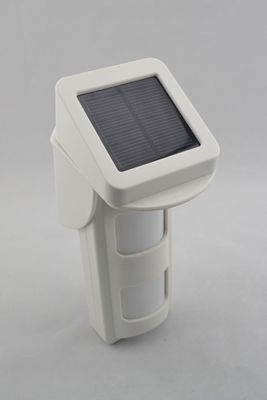

Pet-friendly Wireless Outdoor Solar PIR Motion Sensor PIR Sensor Waterproof

Pet-friendly Wireless Outdoor Solar PIR Motion Sensor PIR Sensor Waterproof

  • Pet-friendly Wireless Outdoor Solar PIR Motion Sensor PIR Sensor Waterproof
Pet-friendly Wireless Outdoor Solar PIR Motion Sensor PIR Sensor Waterproof
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Lydian
Certification: CE
Model Number: MS-OD11
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiation
Packaging Details: Gift Box or Blister Card
Delivery Time: 7-15 days after receipt of 30%T/T deposit
Payment Terms: L/C,T/T
Supply Ability: 100000 Pieces per Month
Contact Now
Detailed Product Description
High Light:

wireless pir motion sensor

,

outdoor pir motion sensor



Pet-friendly Wireless Outdoor Solar PIR Motion Sensor PIR Sensor Waterproof



Product Features:



>>Rainproof design for outdoor, IP Grade is IP65;

>>Duilt-in 2 newly-developed dual element passive infrared sensor unit;

Intelligent MCU inside, increased anti-light interference and eliminate false alarm;

>>Adopts Pet Immunity technology and specialized optical lens for eliminate false alarm;

>>Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;

>>Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust;

>>Selectable detection sensitivity (up to 8 sensitivity levels for choosing) for different environmental requirements;

>>Internal Wireless Antenna, long distance transmission;

>>Wireless transmitting digital signal to control panel;

>>Learning code, easy to assign to the alarm panels;

>>Tamper Switch for protecting the to avoid opened;

>>SMT adopted, RF and EMI Immunity;

>>Low power consumption, backup rechargeable battery;

>>Low power alarm;

>>Powered up by solar panel, no need wirings;



Pet-friendly Wireless Outdoor Solar PIR Motion Sensor PIR Sensor Waterproof 0









Pet-friendly Wireless Outdoor Solar PIR Motion Sensor PIR Sensor Waterproof 1



Technical parameters:



Operating Voltage 9-15VDC(Powered Up by Solar Panel)
Detection Range Vertical angle 60degree, Horizontal angle 110 degree, 12m at 20°C.
Standby Current less than 100uA
Alarm Current less than 30mA
RF Immunity > 30V/m 0.1-500MHz
Sensitivity > 3300V/W
Noise(Vp-p) <200mV, (mVp-p)(25°C)
Anti white light >10000Lux
Transmitting Freq. 433MHz
Transmitting Distance minimum 100m( in the open area)
Pet Immunity ≤25Kg
Temperature Range -20°C ~ +55°C
Relative Humidity 95% (25 °C)
Installation Mode Wall mounted by bracket
Backup Battery 3*1.2V AAA Ni-MH Rechargeable battery, can last up to 40days.
Installation Height

1.8~2.4m
