| Place of Origin: | China |
| Brand Name: | Granding |
| Certification: | CE/FCC |
| Model Number: | InBio460 DEMO CASE |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Packaging Details: | Packed in carton ( wooden can be available if in special amount and requirement) |
| Delivery Time: | 2 working days after received your payment |
| Payment Terms: | T/T in advance |
| Supply Ability: | 5,000pcs per week |
| Product Name: | RFID Card Access Control Panel DEMO CASE | Communication: | RS485, TCP/IP |
|---|---|---|---|
| CPU: | 32bit MIPS CPU | Power Supply: | DC 9.6V-14.4V |
| LED Indicator: | YES | Card Capacity: | 50,000 |
| Event Buffer: | 200,000 | ||
| High Light: | access control panel |
||

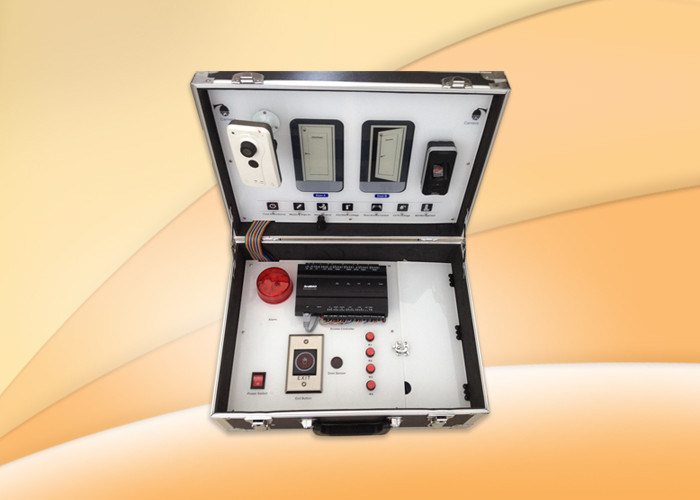

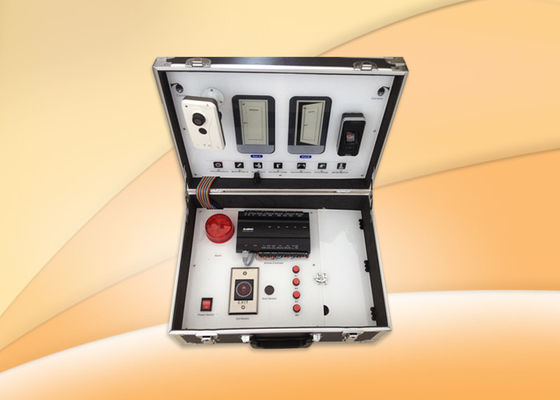

Demo Case Of RFID Card Access Control Board And Two FR1200 , Built In Power
Features:
1. DEMO CASE with FULL function of one inBIO460
door controller and two FR1200, built-in power
supply, motion detector and alarm etc.;
2. 4 exit buttion, 4 door sensor, 4 relay output, 4
switch input; 1 SD card slot
Specifications:
|
Model |
inBIO460 |
|
CPU |
32bit MIPS CPU |
|
RAM |
32M bits |
|
Flash Memory |
128M bits |
|
Fingerprint Capacity |
3000 |
|
Card Capacity |
50,000 |
|
Event Buffer |
200,000 |
|
Power/Current |
DC 9.6V-14.4V, Rated Max 0.5A |
|
Wiegand Reader Port |
4nos. (26/34 bit Wiegand, 4/8bit Burs for PIN) |
|
RS485 Reader Port |
1no. Extended RS485 Port |
|
Communication |
RS485, TCP/IP |
|
Baud Rate |
38,400bps(Recommended)/9600bps, 19,200bps(selectable) 57,600bps(selectable) |
|
Input Port |
12nos.(Exit Button#1, Door Sensor#1; Exit Button#2, Door Sensor#2; Exit Button#3, Door Sensor#3; Exit Button#4, Door Sensor#4, 4 Aux input) |
|
Output port |
4no.(4 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC) |
|
|
4no.(4 Aux FORM-C Relay Output, SPDT 2A@30VDC) |
|
LED Indicator |
LED indication for communication, power, status and valid card read |
|
Operating Temperature |
0°C ~ 55°C |
|
Operating Humidity |
10% to 80% relative humidity non-condensing |
|
Dimension(H*W*D)mm |
226mm*106mm*36mm(single board) |
|
|
400mm*330mm*90.5mm(metal board) |
|
Software |
ZKAccess 3.5 |
